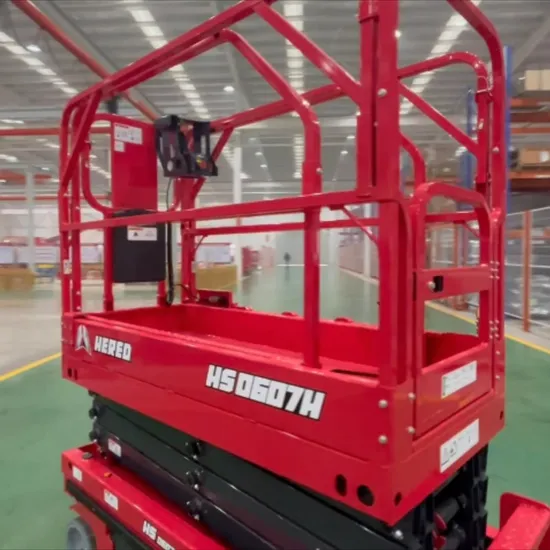

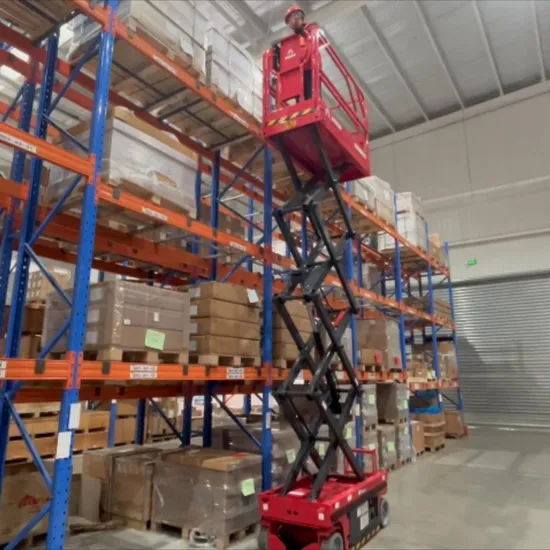

ZGMG Electric Mini Aerial Work Platform Factory Price, Small Scissor Lift
17 sold in last 11 hours
Estimated Delivery: Thu, Mar 05 – Mon, Mar 09
... people are viewing this right now
Basic Info.
Model NO.
HS0607H
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001, ANSI
Tires (mm)
305mmx100mm
Control
Proportional
Turning Radius (out.)
1.55m
Drive Speed (Raised)
0.8km/H
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
1.86m * 0.76m * 2.17m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
20, 000 Sets /Year
Packaging & Delivery
Package Size
186.00cm * 76.00cm * 217.00cm
Package Gross Weight
1560.000kg
Product Description
Online consultation to get the lowest price
1. Optimized matching, high cycle times, better endurance.
2. Precise control greatly improves the smoothness of operating.
3. Large ground clearance, stronger passability
| MODEL | HS0607H |
| Max. Working Height(In/out) | 7.8m/7m |
| A-Max. Platform Height(In/out) | 5.8m/5m |
| B-Platform Length | 1.63m |
| C-Platform Width | 0.74m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.17m |
| Height (Rails Down) | 1.83m |
| E-Length (with Ladder) | 1.86m |
| F-Overall Width | 0.76m |
| G-Wheel Base | 1.32m |
| H-Clearance (Stowed) | 0.06m |
| I-Clearance (Raised) | 0.02m |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/1 |
| Max.Drive Speed (Stowed) | 4km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Out.) | 1.55m |
| Up/Down Time | 16/34s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Control | Proportional |
| Drive | FWD |
| Multi Disc Brake | Rear |

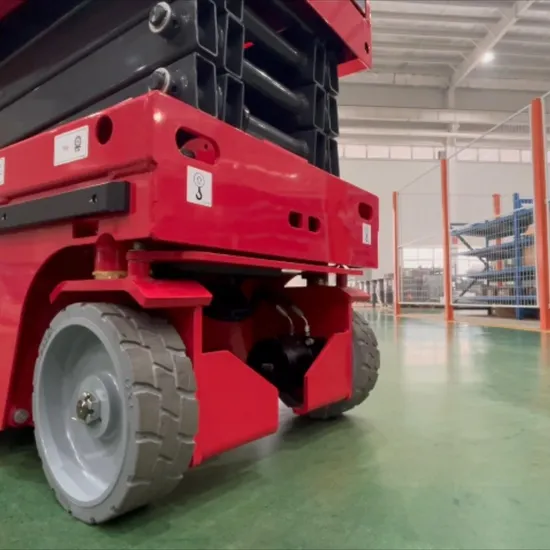

| Tires (mm) | 305mmX100mm |
| Max.Wind Speed | 12.5m/s |
| POWER | |

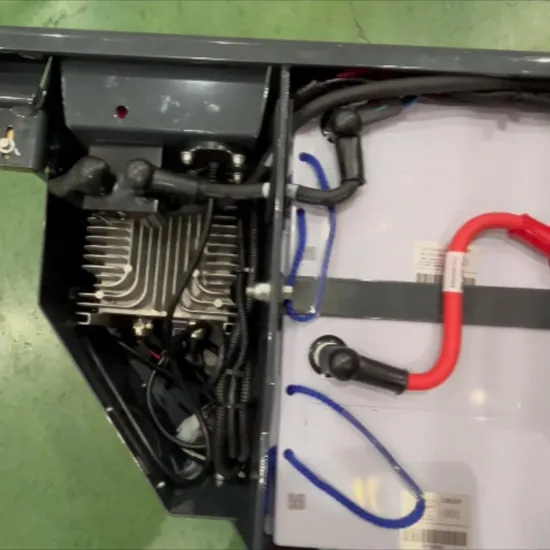

| Batteries (V/Ah) | 24V/200Ah |
| Charger | 100-240VAC/10A |
| WEIGHT | |
| Weight | 1560kg |
