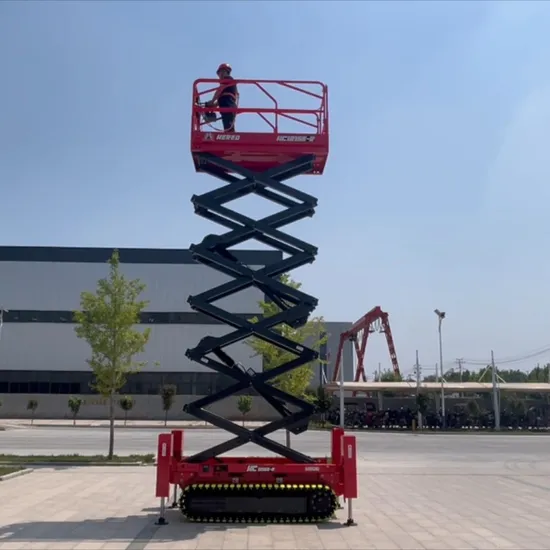

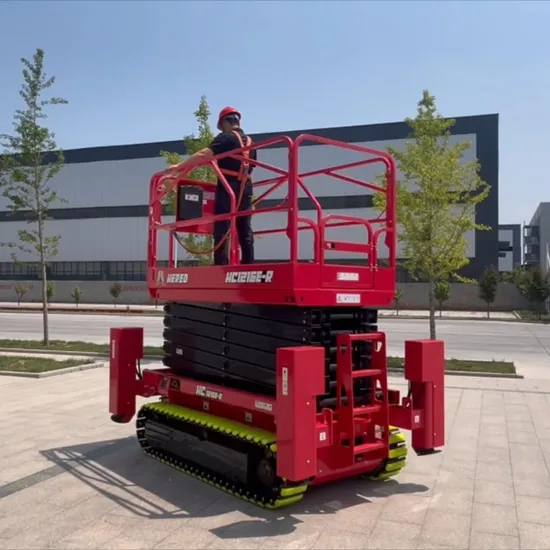

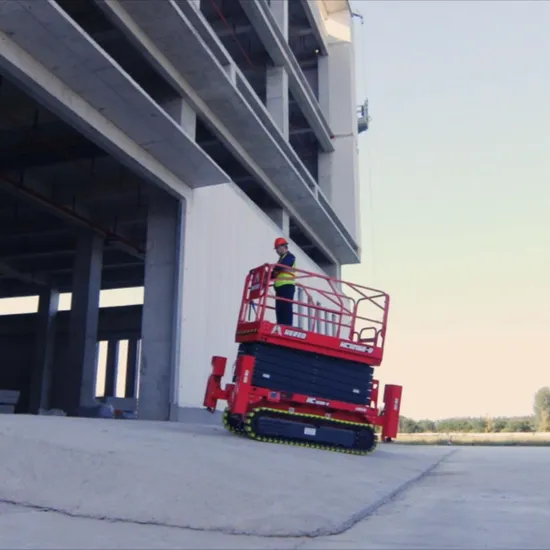

ZGMG Electric Hydraulic Scissor Lift – All-Terrain Tracked Factory Price
89 sold in last 16 hours
Estimated Delivery: Thu, Mar 05 – Mon, Mar 09
... people are viewing this right now
Basic Info.
Model NO.
HC1216E-R
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating, Spillover Valve
Certification
GS, CE, RoHS, ISO 9001, ANSI
Max.Working Height
13.8m
Max.Platform Height
11.8m
Platform Capacity
320kg
up/Down Time
65/60s
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
3.02m * 1.6m * 2.71m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
20, 000 Units/Year
Packaging & Delivery
Package Size
302.00cm * 160.00cm * 271.00cm
Package Gross Weight
3660.000kg
Product Description
Online consultation to get the lowest price

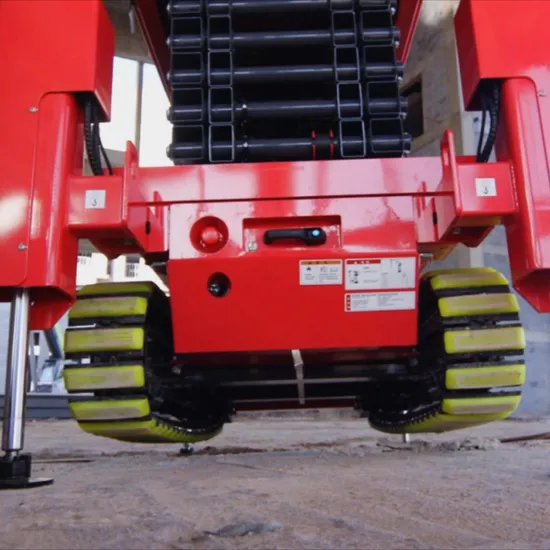

1. Drive on all rough terrains.
2. Large ground clearance, stronger passability.
3. AC motor drive, smooth driving, low noise.
4. Large capacity batteries, better endurance.
| MODEL | HC1216E-R |
| A-Max. Platform Height(In/out) | 11.8m/11.8m |
| Max. Working Height(In/out) | 13.8m/13.8m |
| B-Platform Length | 2.26m |
| C-Platform Width | 1.12m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.63m |
| Height (Rails Down) | 2.03m |
| E-Overall Width with Outriggers | 2.83m |
| F-Overall Width | 1.6m |
| G- Ground Clearance | 150mm |
| PERFORMANCE | |
| Platform Capacity | 320kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/2 |
| Max.Wind Speed | 12.5m/s |
| Drive Speed (Stowed) | 4km/h |
| Turning Radius | Rotate in Place |
| Up/Down Time | 65/60s |
| Gradeability | 0.4 |
| Max. Slope | / |
| Leveling angle of the legs | 12°/5° |
| Drive | Rear Crawler |
| Crawler (mm) | 230mmX90mmX53 |
| POWER | |
| Batteries (V/Ah) | 8X6V/200Ah |
| Charger | 100-240VAC/13.5A |
| WEIGHT | |
| Weight | 3660kg |
